Wires through the railing, not around it

Placid Point Lighting by Keylink

  • Post cap, stair accent and under rail on one connector
  • 3000K warm white, rated 50,000 hours
  • IP67 power supply, plugs into a GFCI outlet
  • Dusk to dawn, nine brightness levels, 25 second walk away
Placid Point Decorative Light Post Cap by Key-Link

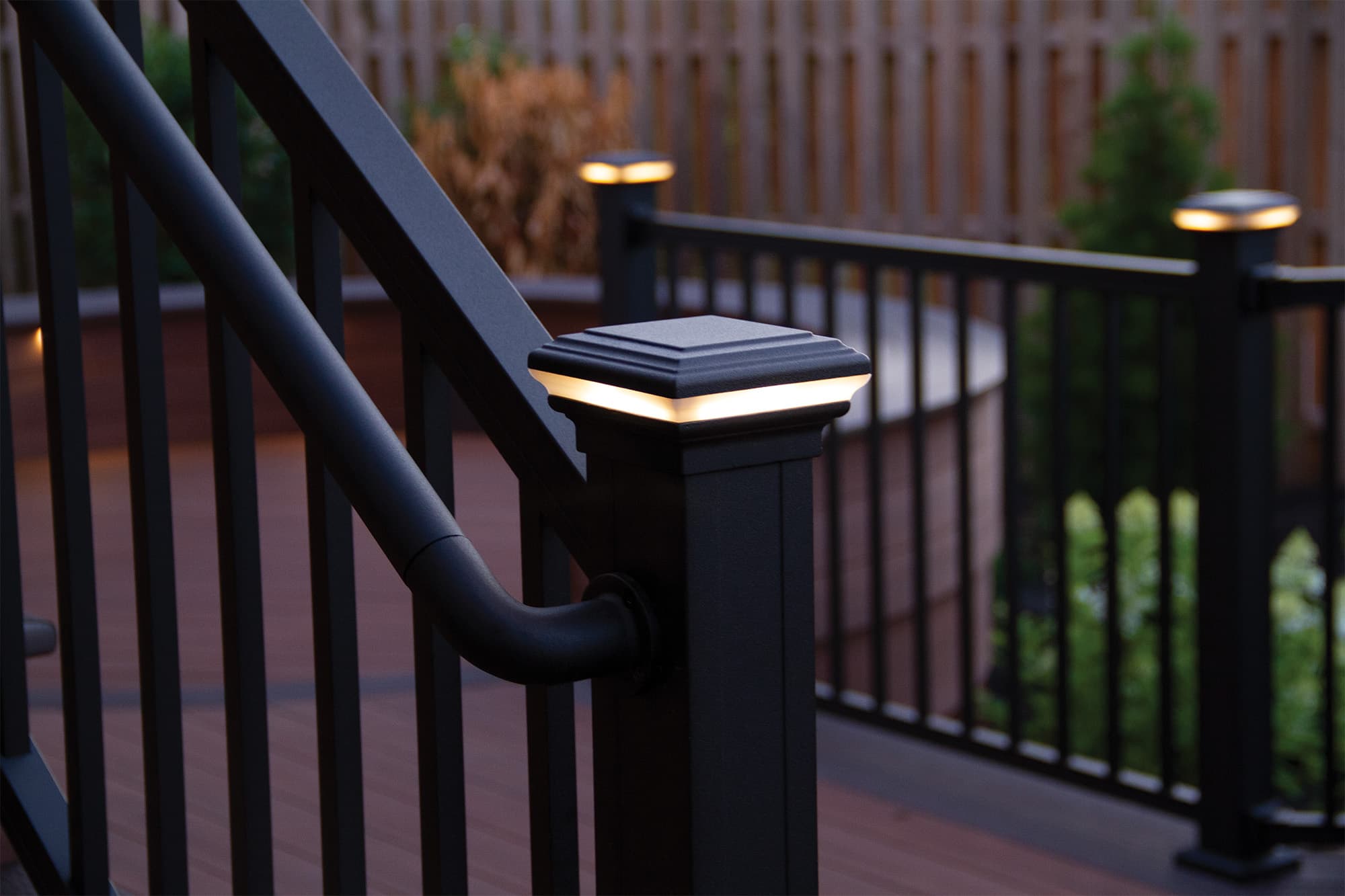

Placid Point post cap lights on Keylink railing at dusk

Placid Point lighting is the Keylink lighting line, built to run inside Keylink posts and rails. Three light types share one waterproof connector, one control hub and one power supply, so you can start with post caps and add the rest later.

Sort

Choose a Collection
8 products

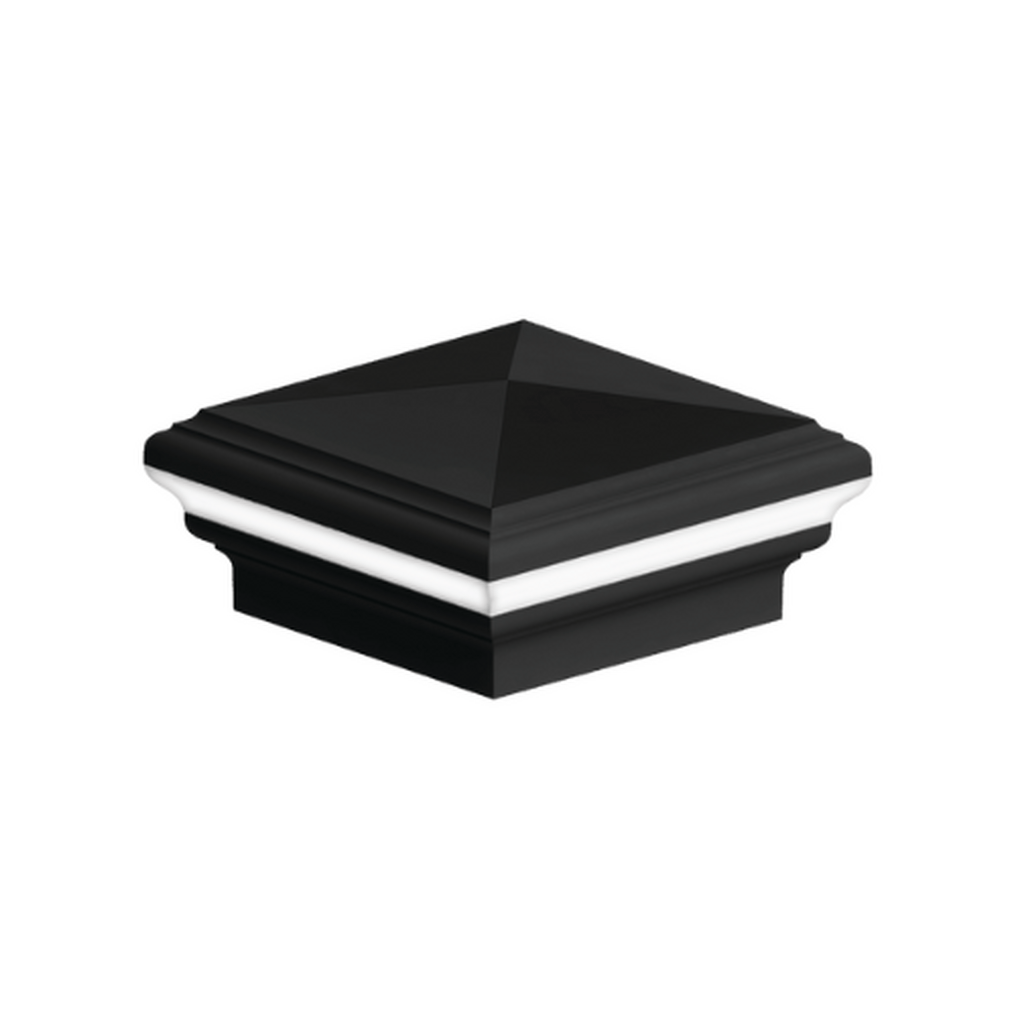

Placid Point LED post cap light in gloss black with illuminated white light band, studio shot
Decorative Post Cap Light, placid point lighting view
+5
Decorative Post Cap Light | Placid Point Lighting Keylink from $10975

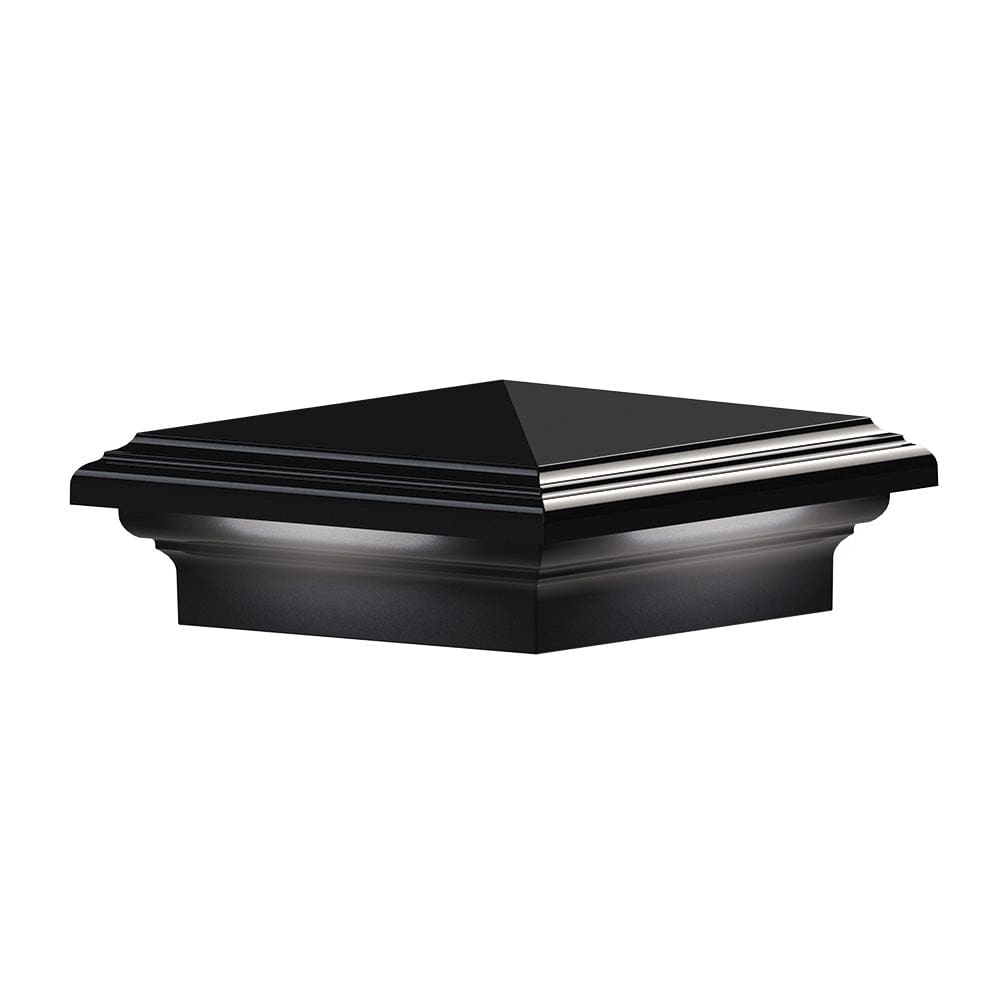

Placid Point decorative post cap downlight in black, warm LED glow on white background
+5
Decorative Post Cap Downlighting | Placid Point Lighting Keylink from $10975

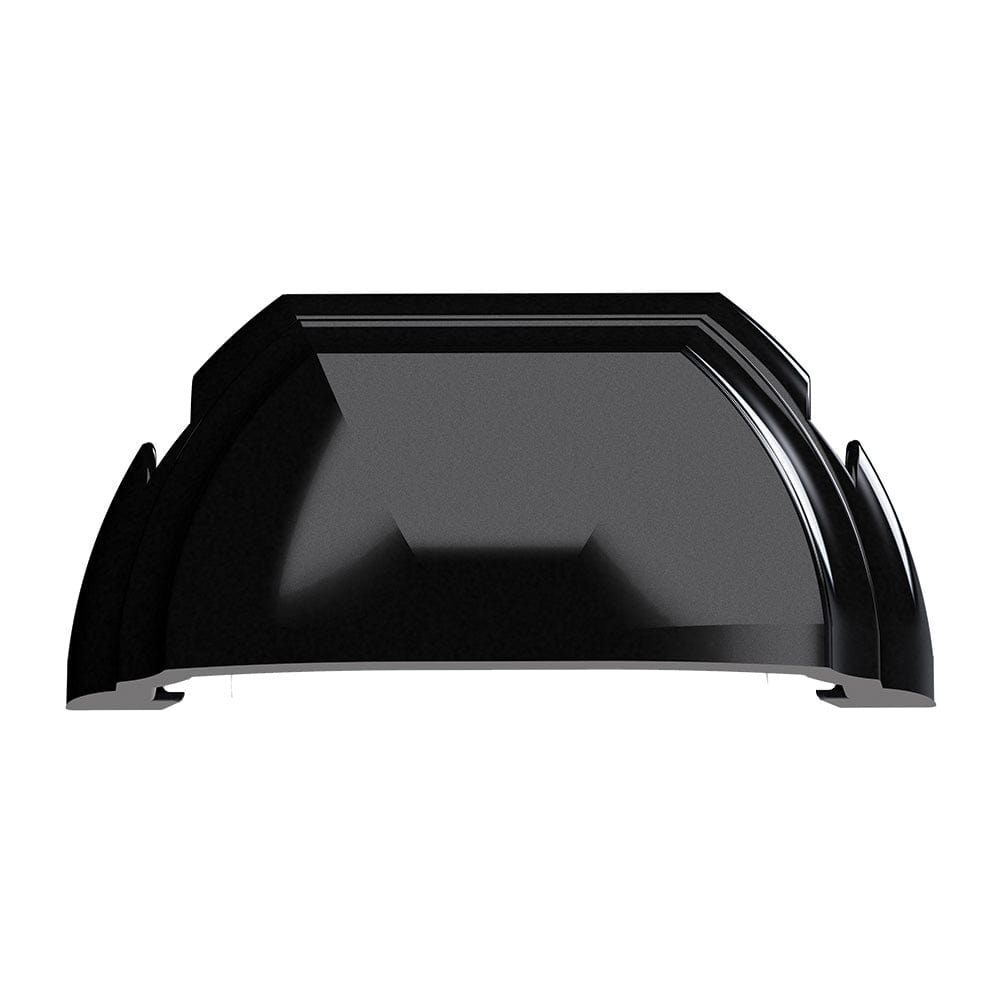

Placid Point post and stair accent light in textured black on white background
+2
Post and Stair Accent Light | Placid Point Lighting Keylink $4511

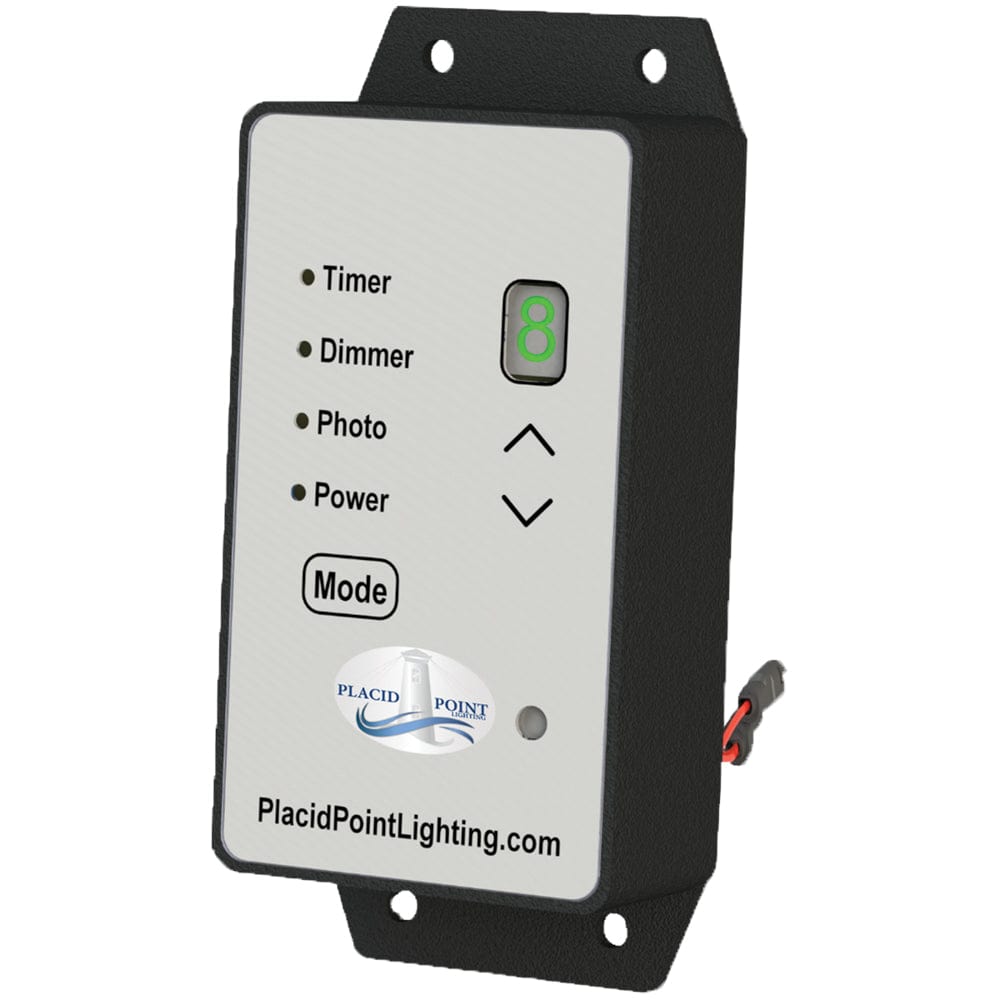

Placid Point 60W deck lighting control hub and power supply in textured black
+6
Placid Point Lighting Power Supply & Control Hub Keylink from $37937

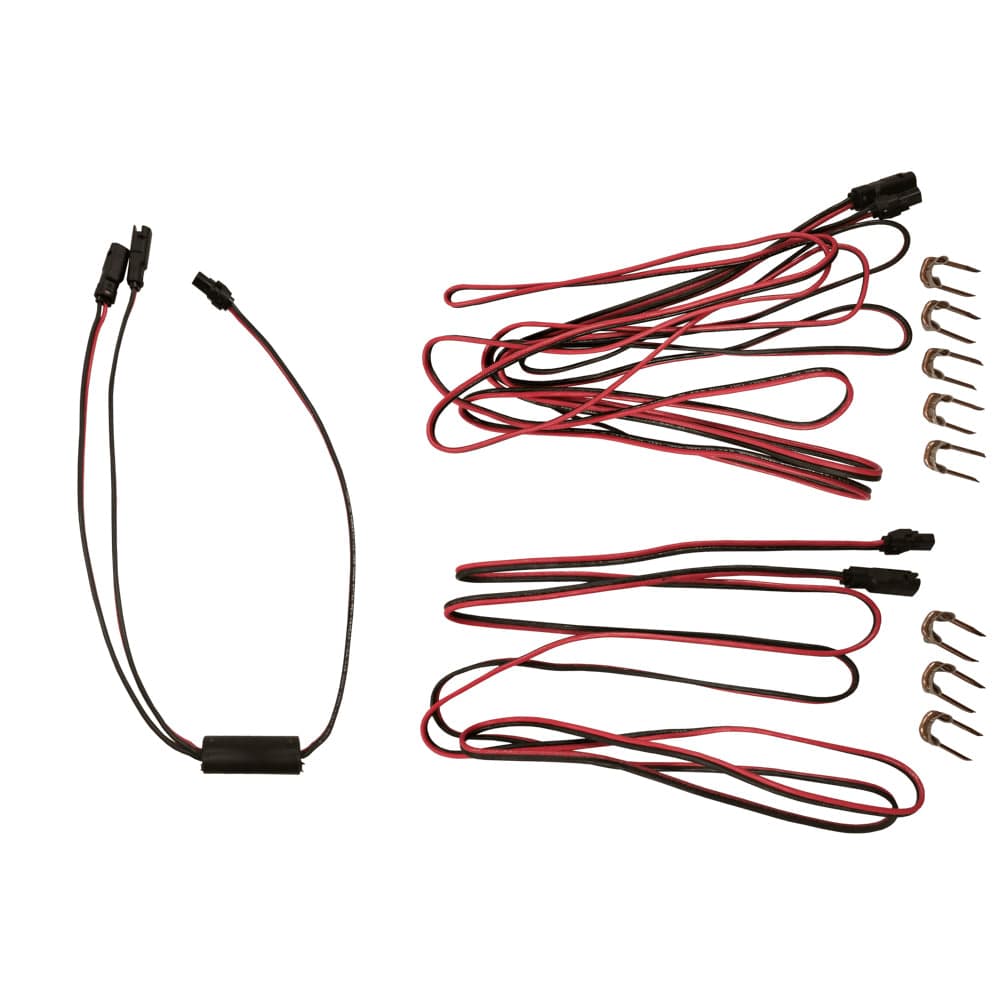

Placid Point post light wire kit for deck lighting installation
Post Light Wire Kit | Placid Point Lighting Keylink $6733
Placid Point extension wire for deck lighting, low voltage cable
Extension Wire for Placid Point Lighting Keylink from $1459

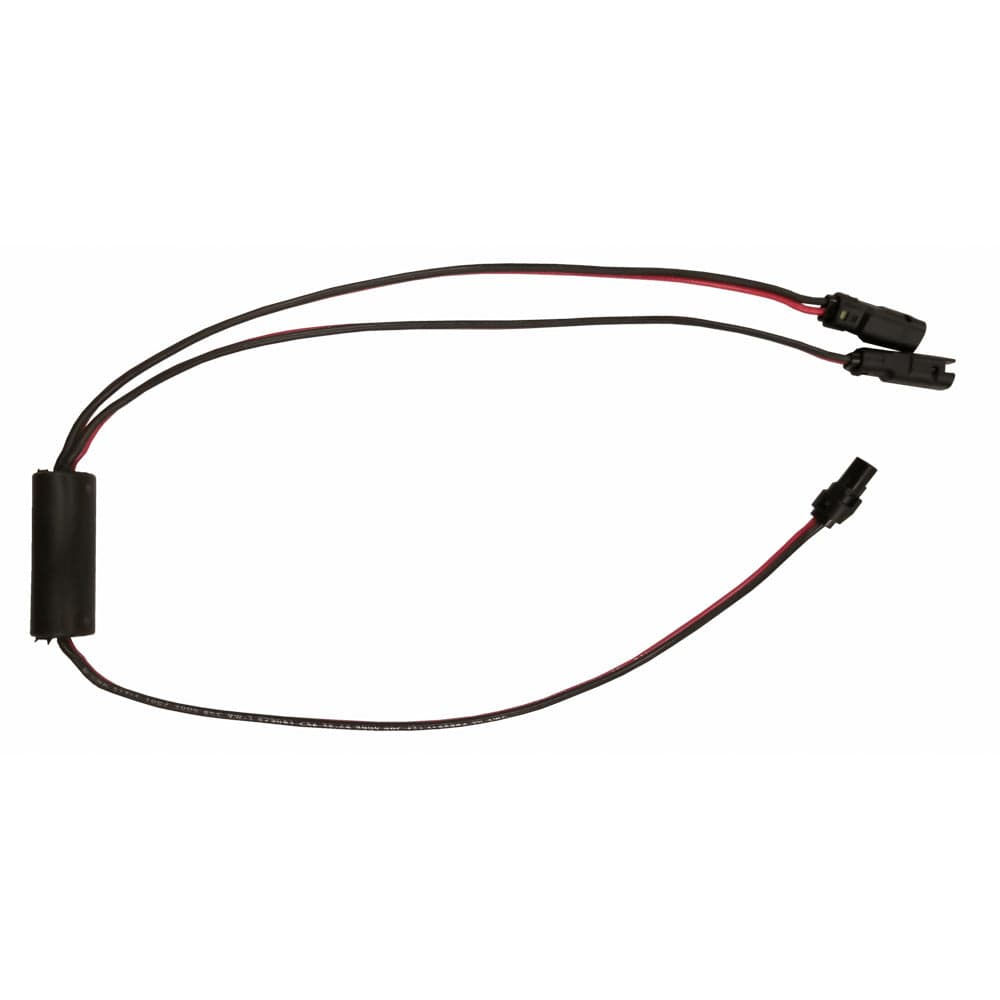

Placid Point wire splitter for deck lighting cable, low voltage connector
Wire Splitter | Placid Point Lighting Keylink from $2628

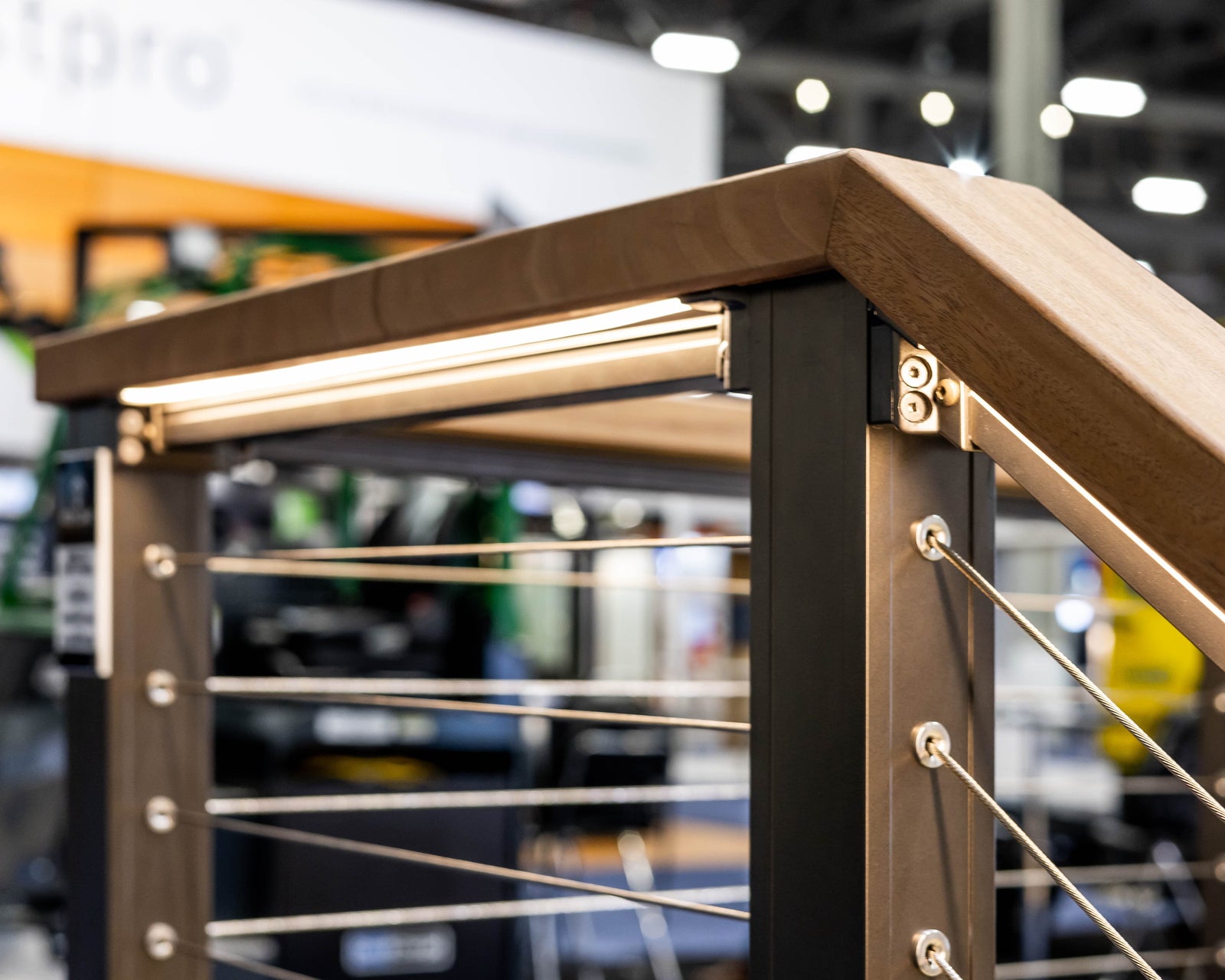

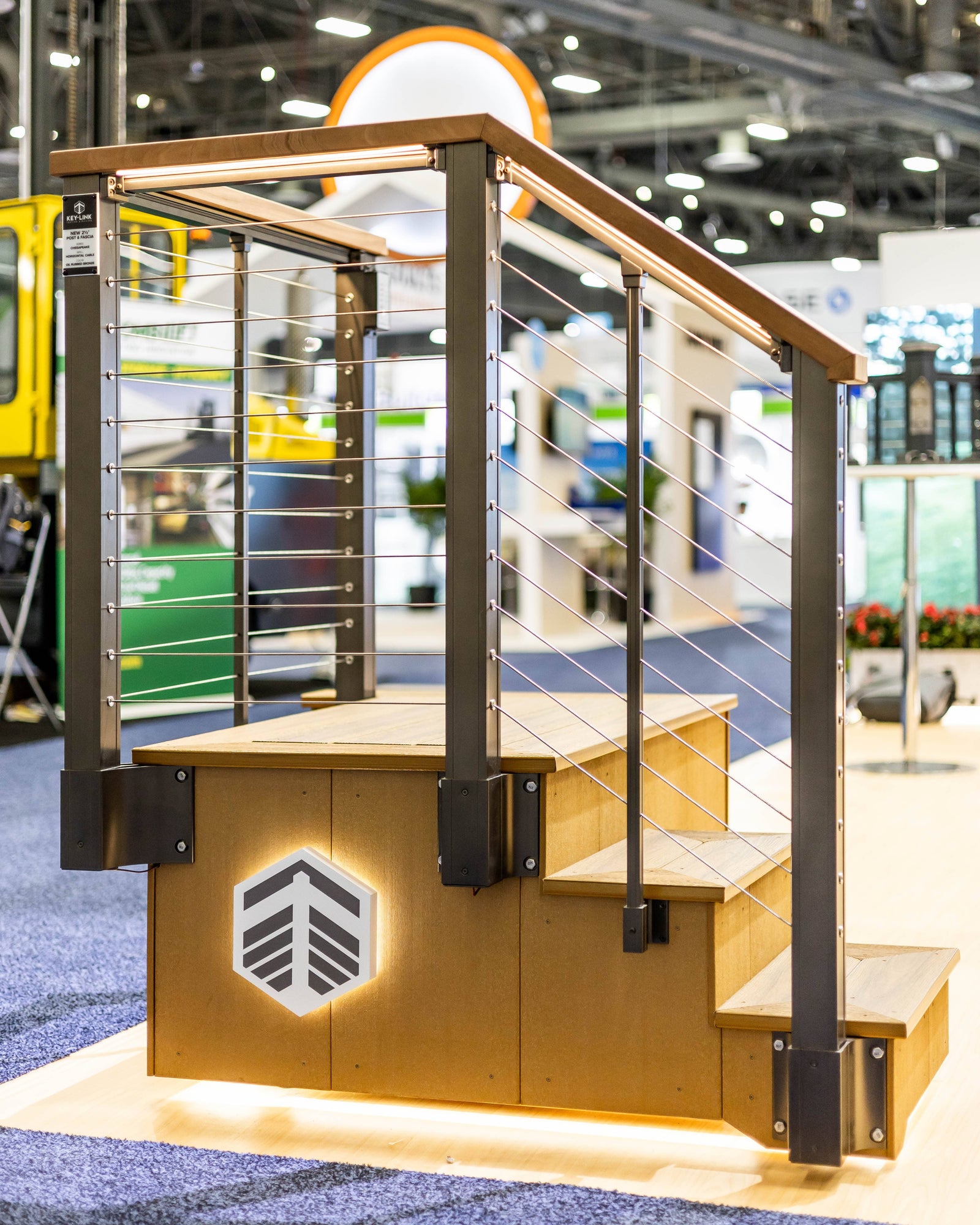

Placid Point Under-Rail Lighting for Chesapeake Series - LED under-rail deck lighting
Placid Point Under-Rail Lighting for Chesapeake Series
Placid Point Under-Rail Lighting for Chesapeake Series Keylink from $10290
Placid Point post cap light on a Keylink aluminum post at dusk

Which Placid Point light goes where?

Three types, and most decks use two of them. The post cap light sits on top of every post and doubles as the cap, so it is the one that shapes the look from the yard. The post and stair accent light recesses into the side of a post at any height, which is what you put on stair posts and at landings. The under rail strip clips into the channel below the top rail and is the one that actually lights the deck surface.

How many lights will one power supply run?

The standard supply is 60 watts and there is a 120 watt for larger decks. On the 60 watt, plan around 32 feet of under rail strip on a single run, and use the expandable splitter past that. Send us your post count and run lengths and we will size the supply and lay out the wiring.

What does the control hub do?

It is the piece that makes the lights automatic. Dusk to dawn or a 1 to 9 hour timer, nine brightness levels, and a photocell sensitivity setting for a yard with streetlight nearby. Turning the lights off manually starts a 25 second countdown so you can get inside first. Your settings are saved and come back every time the lights turn on.

How does the wiring work?

Low voltage, plug and play. Every light ends in the same Mini Mizu P-25 waterproof connector, so nothing is spliced and no wire is stripped. Wire runs through the hollow posts and rails through a 3/8 inch access hole, two way splitters branch the run at a post, and the supply plugs into a GFCI outlet with a hooded cover. No electrician and no hardwiring.

Does it work with Chesapeake railing?

Yes, and the under rail kits include the Chesapeake adapter clips for the wider channel. On American Series the strip clips straight under the top rail. Strips cut to length with tin snips, and you seal the cut end with clear silicone.

Placid Point light types

Post cap lightPost and stair accentUnder rail strip
Where it goesOn top of a postRecessed in a post sideIn the channel under the top rail
What it lightsDownward glow or a haloA stair tread or a landingThe deck surface
Doubles asThe post capNothing, it is an add onNothing, it is an add on
Cut to lengthNoNoYes, with tin snips
ConnectorMini Mizu P-25Mini Mizu P-25Mini Mizu P-25
Usual roleThe look from the yardSafety on stairsUsable light on the deck

Frequently asked questions

Do I need an electrician?

No. The system is low voltage and the power supply plugs into a standard GFCI outlet with a hooded cover. If you do not have an outlet near the deck, that part is an electrician's job.
Can I add lights later?

Yes, as long as the power supply has headroom. Every light type uses the same connector and the same hub, so adding a run is plugging into a splitter rather than rewiring. Tell us what you might add later and we will size the supply for it now.
Will Placid Point fit a post that is not Keylink?

It is engineered for Keylink posts and rails first, and the wire routing assumes a hollow aluminum post. For Trex, Deckorators and most other aluminum posts, LMT Mercer is the line that fits more widely.
What color is the light?

3000K warm white across all three types, so the post caps, stair lights and under rail strip match. LEDs are rated at 50,000 hours and the boards are conformal coated against moisture.
Can the lights stay on all night?

Yes. Dusk to dawn is a hub setting. The alternative is a timer of 1 to 9 hours from the moment the photocell triggers, or manual mode, where they only change when someone presses a button.
How far can one under rail run go?

About 32 feet on the 60 watt supply. Past that you split the run with the expandable power splitter or move up to the 120 watt supply. Start the wiring at the center post and work outward in both directions.

Ready to see it on your deck?

You approve the layout, and the parts list comes off it. A specialist quotes it in one business day.
